- Specifications

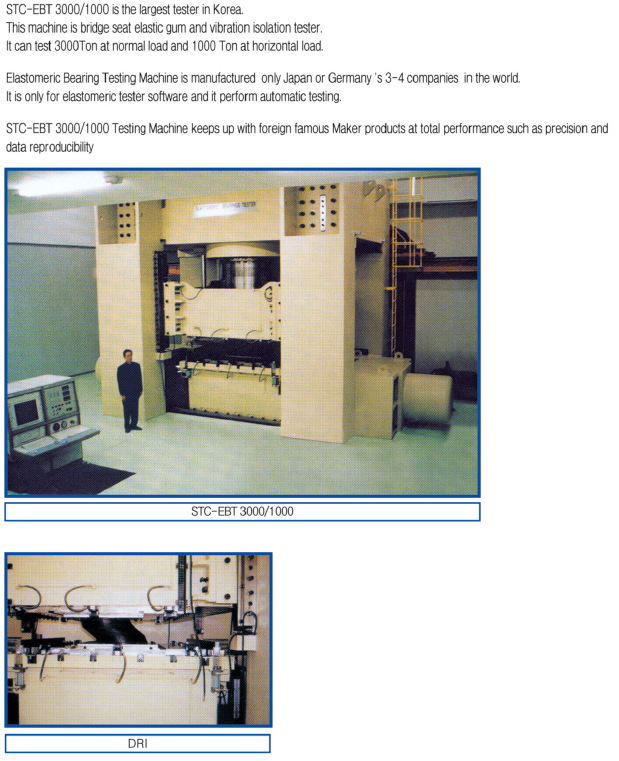

Loading frame 1 set |
Max Loading : Vertical Loading 3000tonf Horizontal Loading : 1000tonf
Size : about 12000(W)3500(D)8000(H)mm
Real Size of specimen : 2000(W)2000(D)1000(H)mm
Vertical & Horizontal two axles tester
Max Size : 12000(W)1200(D)400(T) 1500400(t)mm |
| Vertical Actuator 1set |
Max Capacity : 3000tonf Strok : 800mm Max Speed : 260mm/min
Precision : 0.5% Electronic precision pressure gauge(350kg/)
Stroke accretion : 500mm(SANTEST-Japan)
Servo Valve-Moog 072Type(228/min)-USA Swivel Head & Base (1set) |
| Horizontal Actuator 1 set |
Max Capacity : 1000tonf a two way-tensile & compression - 2 rod
Stroke : 800mm Max speed : 600mm/min Precision : in 0.5%
Load cell-100tonf Stroke detection : 600mm(SANTEST-Japan)
Servo Valve-Moog 072Type(228/min)-USA Swivel Head & Base (1set) |
| Hydraulic Unit 1 set |
Working Pressure : 350kg/ Discharge Rate :228 /min
Motor Capacity : 55kW2ea Cooling Rate : 200
PALL Filter System- High Temperature-6/Air filter-6 |
a great diffrence 1set
for facilities installation |
Controlled by Hydraulic Cylinder Rail accretion Portable Crane device accretion |
| 1 set of specimen change all accessories |
| Precise displacement meter for measuring precise displacement measurement LVDT (Precision : up to 0.05%)-4ea |

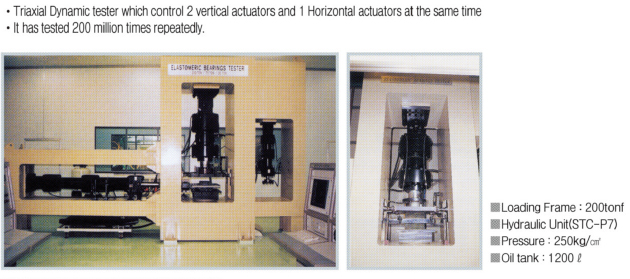

- 3 axial
|
Pumb performance(pressure fatigue tester)
|
Horizontality performance(shearing test)
|
Plumb moment |
| Max Load |
200tonf |
75tonf |
20tonf |
| Max displacement |
300tonf |
600tonf |
20tonf |
| Max Speed |
64mm/sec |
64mm/sec |
64mm/sec |
|
| |
Untitled Document
 |
| |

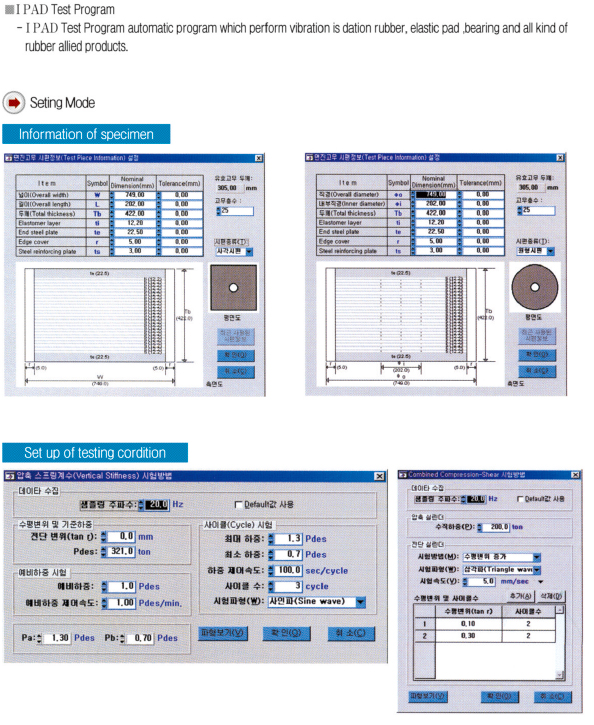

- IPad TEST
- Report
| Customer |
|
Dimension |
|
| Product maker |
|
Tester |
|
Date |
|

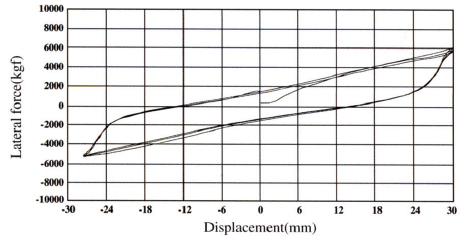

Dynamic test type I
- Testing Speed : 2360 mm/min
- Testing Temperature : 21.0'c
- Size of Specimen
- Tested Cycle number of test Specimens : each 3 cycle at specified displacement
- Number of layer : 8
- Nominal thickness of an elastomer layer : 2.0mm
- Total initial thickness of elatstomer(To) : 42mm
- vertical Load : 21670kgf
- Design Displacement(Vd, x)
| Model |
Symbol |
Test |
STC-V103 |
Horizontal
Displacement(mm) |
Vmax,x |
29.99 |
|
| -Vax,x |
-27.68 |
|
Horizontal
Force(kg f) |
fmax,x |
6144.7 |
|
| -fmax,x |
-5331.4 |
|
Horizontal stiffness
(kg f/mm) (1st cycle) |
K1,x |
99.52 |
| |
(Fmax,x-(-Fmax,x))/2 |
| keff,x= |
|
| |
Vmax,x-(-Vmax,x) |
|
Horizontal stiffness
(kg f/mm) (3rd cycle) |
K3,x |
94.69 |
Effective stiffness
(kg f/mm) |
Keff,x |
94.69 |
| Shear Modulus(kg/) |
Gd |
22.50 |
| (Fmax,x-(-Fmax,x))X To |
|
| 2A'*(Vmax,x-(-Vmax,x)) |
|
Area of histerisis curve(kg/) |
A |
157621.1 |
|
| Equivalent damping(%) |
|
29.46 |
|
| Inspection of Isolation edge |
- |
No crack, No bond failure |
No crack, No bond failure |
|
| |
|
| |
| |
|
