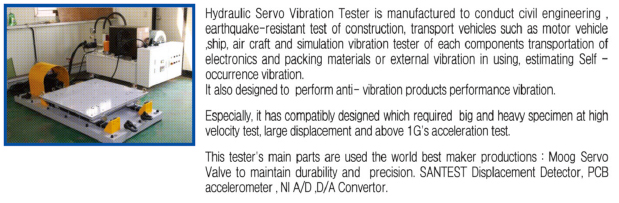

Hydraulic Servo Vibration Teaster

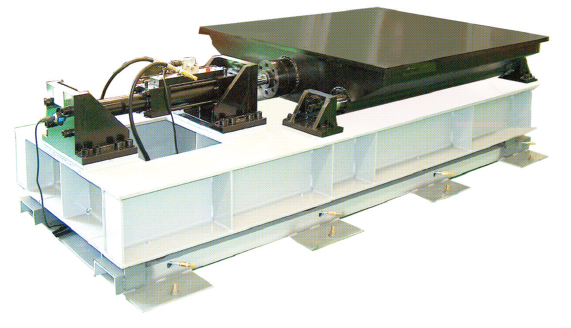

- Loading Unit

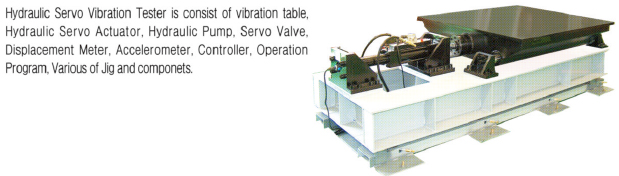

- Composition of Hydraulic Servo Vibration Tester

• Hydrostatic Bearing installation

• Low friction slip table which installed with detailde LM guide.

• Monolithic Rod and Piston

• LVDT internal installation

• Using Special SEAL

• Anti-impact airspring installatio

Dynamic Achuator	Capacity(tonf)	Stroke(mm)
STC-2D	±2	±100
STC-5D	±5	±100
STC-15D	±20	±150



- Digital Controller

Control Object		Load, Displacement, Strain etc
Large size LCD display
Control Mode		Basic,User define, Extemal wave loading by Sine, Ramp,Triangular etc
Frequency		0.001 to 1000Hz
Control loop		P.I.D close-loop
A/D channel		16
32bit DSP Board Data acquisition		60MHz NI 16 bit PCI card
Signal conditioning		HBM 5KHz C.F Measuring Amqlifier
Control Method		Stand Alone or PC Control

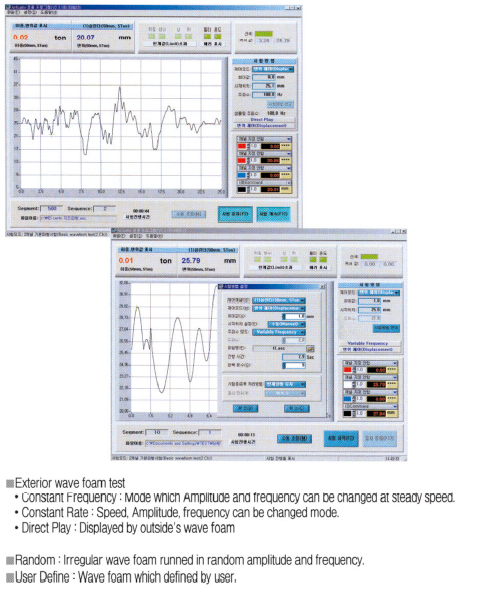

SVR Random & Vibration Loading Program Vibration test
- Inter outside wave foam including earthquake wave foam directly loading or conduct test by changing speed,
amplitude, frequency. It is hydraulic fatigue tester and vibration tester's operation program which can load random wave foam

• Load, Acceleration Control

• Basic wave foam test-SINE, HALE, TRINGLE, RAMP

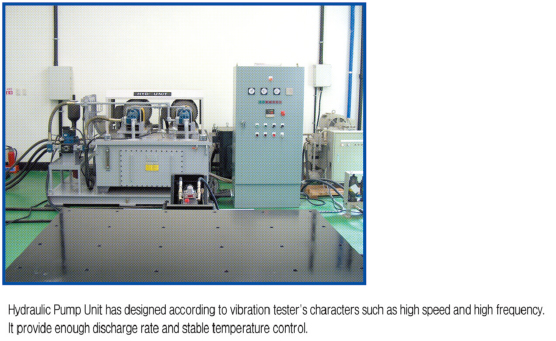

Hydraulic Pump Unit

Model (Type)	Discharge rate (Flow)(ℓ/m)	Moter	Cooling rate (Cooling))(ℓ/m)
STC-P1	11	5.5kW	10
STC-P2	19	11kW	20
STC-P3	60	22kW	40
STC-P4	120	22kW×2	75
STC-P5	162	37kW×2	150
STC-P6	228	55kW×2	200
STC-P7	324	75kW×2	300



Specifications

Model	STC-V101	STC-V102	STC-V103
Dynamic Force(tonf)	2	5	15
Stroke(mm)	±100	±100	±150
Table Size(mm)	1000×1000	1500×1500	2000×2000
Max Acceleration(G)	1	1	1
Hydraulic Pump(L/Min)	STC-P3(57)	STC-P4(120)	STC-P6(228)
Max Load Force(tonf)	1	2.5	7

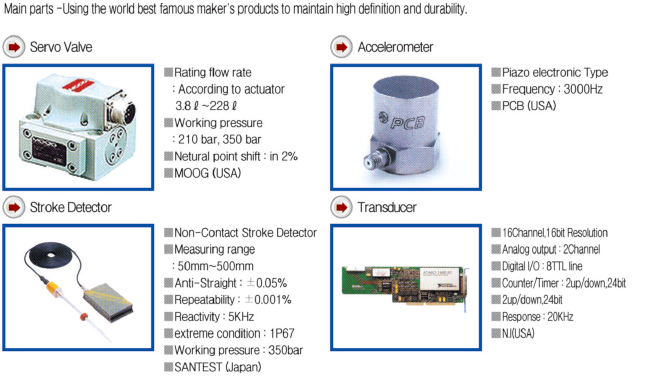

Servo Valve	Moog 63 ℓ/min	Moog 63 ℓ/min×2	Moog 228 ℓ/min
Stroke Detector	Non-contact Type ±100mm	Same as left	Same as left
Acceleration meter	PCB 1G	Same as left	Same as left
Control &Data Acquisition program	1)SVR Random & Vibration program 2)SACT Actuator Control program 3)SAS Data aquisition program	Same as left	Same as left
Controller STC-500	1)32bit DSP loaded 2)Closed loop PID Control 3)PID loop rate : 5KHz 4)Acceleration,Displacement Control 5)Control Frequency : 0.001-1000Hz 6)Hydraulic Servo valve control	Same as left	Same as left
PC	1)Pentium4-Above2G 2)Hard disk-Above 2GB 3)17'Standard Monitor	Same as left	Same as left
Option	1)19"Rack 2)STC-16NB Dynamic Strain Meter	Same as left	Same as left
