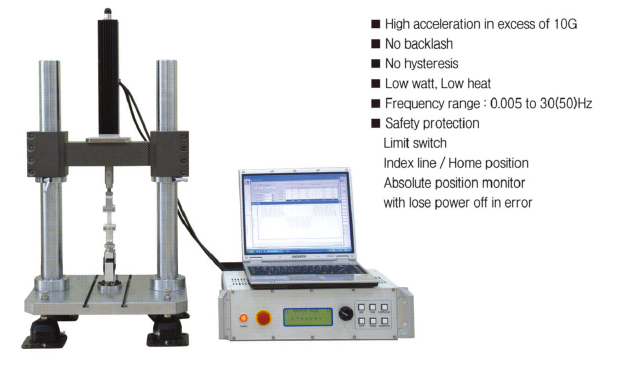

icon Linear Servo Actuator


icon Specifications

Model

STC - MF500

STC - MF250

STC - MF100
vertical type 2 column
Max load ±500N ±250N ±100N
Stroke 25mm 25mm 100mm
Frequency range 0.001 ~ 30 Hz 0.001 ~ 40 Hz 0.001 ~ 50 Hz
Testing speed 500mm/sec
Position resolution 5㎛ (0.5㎛ option)
Load cell ±500N ±250N ±100N
Load accuracy 0.5% of F.S.
Tension Grip Included
Size (Approx) 800(W)×500(D)×1,000(H)mm
Weight (Approx) 100kg 70kg 60kg



icon Controller Program




Digital Servo Controller STC-500

Control Object Load, Displacement, Strain etc
Control Mode Basic, Multi Profile/Batch Profile (Sine, Ramp,Triangular etc)
Frequency 0.001 To 1000Hz
Control Loop PID Close-Loop
Control rate 15KHz
32bit DSP Board 150KHz
Signal Conditioning 5KHz C.F Measuring Amplifier
Control Method Stand Alone or PC Control
Data Acquisition TCP/IP
4 Channel 16 Strain Amplifier (Option)
Operating Program SACT Ver.2

Windows XP

For Static and Dynamic Fatigue Test

Graphic of Load, VS Displacement

Analysis : S.N Curve/Elastic Module

2 Channel Control, 12 Channel Data Acquisition

Cycle count, Limit of Load & Stroke

Transfer to Text File and ASCll File

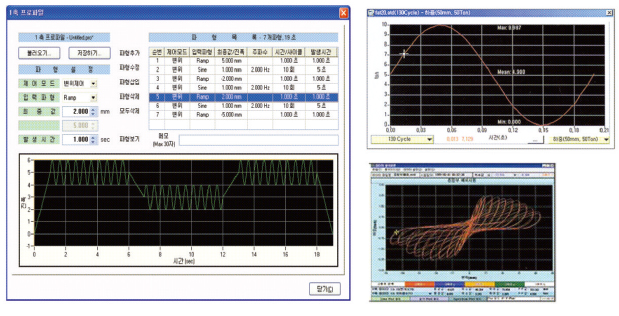

icon Operating program
